Lens Street Light 24w

Product Description

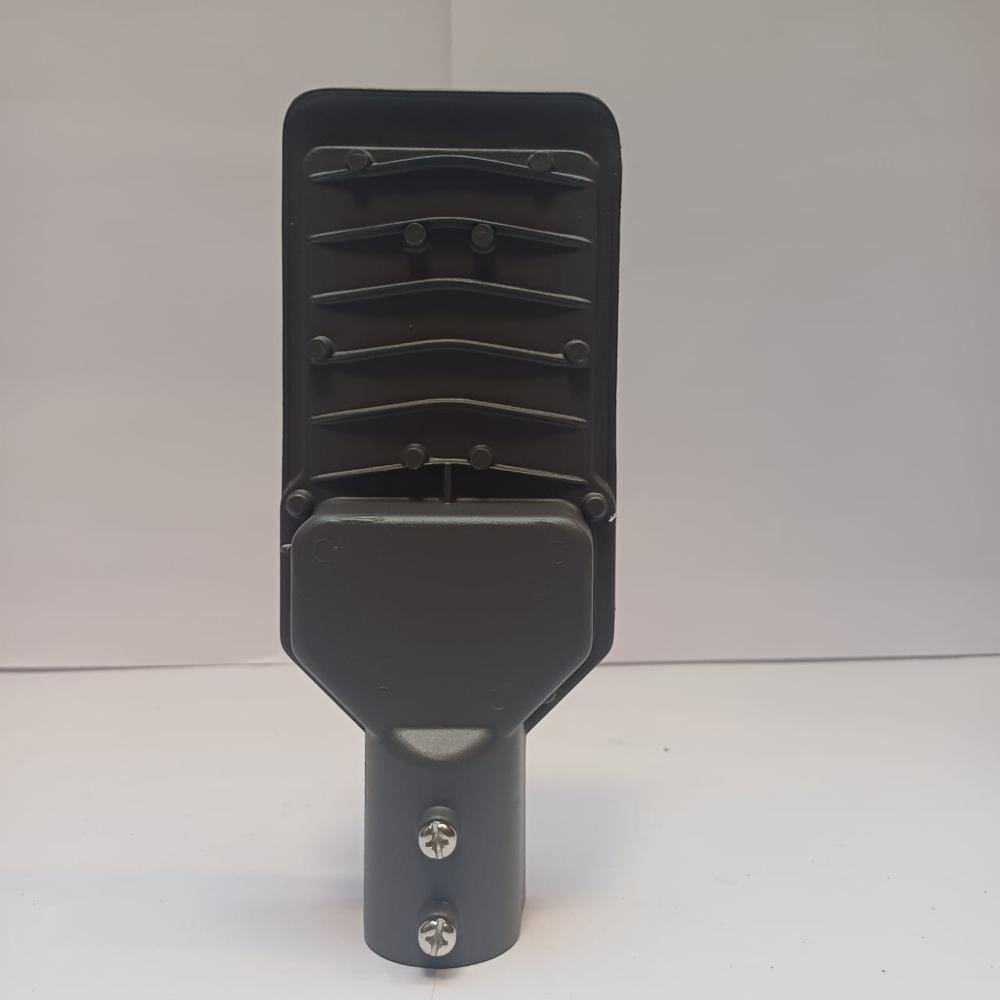

24W Lens Model LED Street Light

Product Description:

The 24W Lens Model LED Street Light is a compact, energy-efficient lighting solution designed for small roads, residential streets, and rural pathways. Engineered with precision optics and durable materials, it provides uniform light distribution and long-lasting performance.

Key Features:

• Power Rating: 24 Watts

• Luminous Efficacy: 100120 lm/W (Approx. 24002900 lumens)

• LED Type: High-power LEDs with individual lenses for each diode

• Optics: Precision-molded polycarbonate lenses for focused beam spread (typically 60 x 120)

• Material: Die-cast aluminum housing for durability and heat dissipation

• Color Temperature: 3000K / 4000K / 6500K (Customizable)

• Surge Protection: Up to 4kV or 6kV (Optional)

• Ingress Protection: IP65 Dust tight and water-resistant

• Mounting: Suitable for pole mount with 4260mm diameter pipe

• Input Voltage: 90300V AC, 50/60Hz

• Power Factor: >0.95

• Life Span: >50,000 hours

• Warranty: 2 to 3 years (as per OEM agreement)

Applications:

• Village and rural street lighting

• Housing societies

• Walkways and service roads

• Industrial campus lighting

• Garden pathways

FAQs 24W Lens Model LED Street Light

Q1. What is the advantage of lens optics in this street light?
A: Lens optics help direct the light in a controlled beam pattern, reducing light spill and improving road visibility, making it more efficient than traditional diffused lights.

Q2. Is this model suitable for solar street light applications?
A: Yes, the 24W model can be integrated into solar street light systems with a compatible driver and battery pack.

Q3. Can the color temperature be customized?
A: Yes, it is available in warm white (3000K), neutral white (4000K), and cool white (6500K) based on order requirements.

Q4. What is the typical pole height recommended for this light?
A: A pole height of 3 to 5 meters is recommended for optimal light coverage.

Q5. Is this light dimmable?
A: Standard models are non-dimmable, but dimmable versions can be provided on request.

Q6. What is the beam angle of the lens model?
A: The typical beam spread is asymmetric around 60 x 120 designed for road lighting applications.

Q7. How long will the light last?
A: The fixture is rated for over 50,000 hours under standard operating conditions.

Q8. Can it withstand voltage fluctuations?
A: Yes, it supports a wide input voltage range of 90300V AC and includes built-in surge protection.
